GeoLogic Drilling Equipment

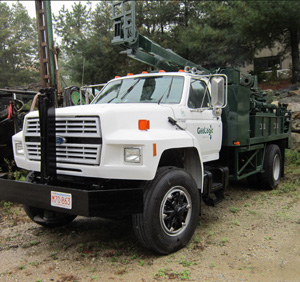

B-53 Truck

Mast Up: 26'
Mast Down: 12'
Height: 12'
Length: 26'
Width: 7' 10"
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 28,000 Lbs.
Fuel: Diesel




B-57 D Truck

Mast Up: 27'
Mast Down: 12'
Height: 11' 8"
Length: 26' 4"
Width: 7' 10"
Pistons Up: 19' 2"
HT on Trailer: NA
HT off Trailer: NA
Weight: 33,000 Lbs.
Fuel: Diesel

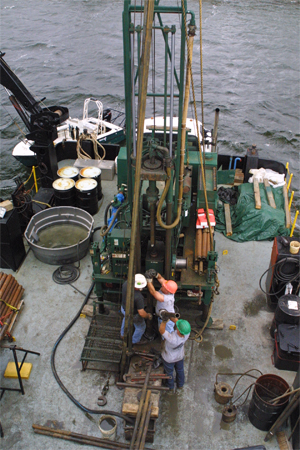

(Shown here Drilling on Barge Deck)




B-57 G Truck

Mast Up: 27' 5"
Mast Down: 12'
Height: 12'
Length: 23' 8"
Width: 7' 10"
Pistons Up: 19' 5"
HT on Trailer: NA
HT off Trailer: NA
Weight: 33,000 Lbs.
Fuel: Gasoline

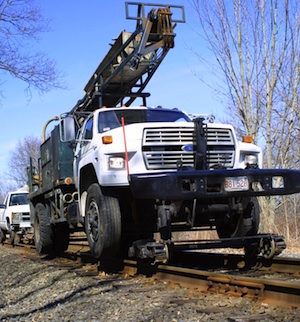

(B-57G Shown here with High-Rail kit)

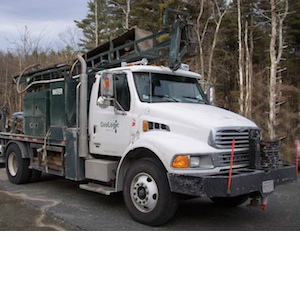

B-57 S Truck

Mast Up: 27' 9"
Mast Down: 12'
Height: 11' 8"
Length: 26' 6"
Width: 8'
Pistons Up: 20'
HT on Trailer: NA
HT off Trailer: NA
Weight: 38,000 Lbs.
Fuel: Gasoline

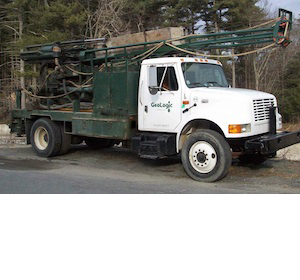

CME 75 Truck

Mast Up: 30'
Mast Down: NA
Height: 12' 6"
Length: 26'
Width: 8'
Pistons Up: 20'
HT on Trailer: NA
HT off Trailer: NA
Weight: 33,000 Lbs.
Fuel: Diesel

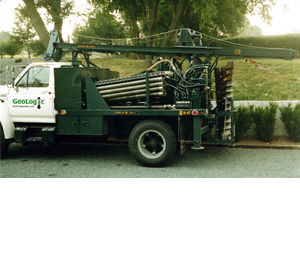

Geologic Drilling B-47 Truck

B-47 Truck

Mast Up: 22'
Mast Down: NA
Height: 10' 8"
Length: 24'
Width: 8'
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 26,000 Lbs.
Fuel: Diesel

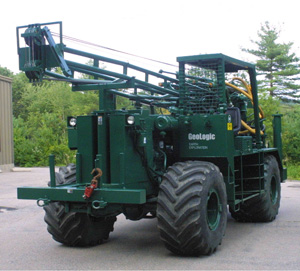

CME-750 ATV 1

Mast Up: 31'
Mast Down: 10' 6"
Height: 10' 9"
Length: 22'
Width: 7' 10"
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 24,000 Lbs.
Fuel: Diesel


CME-750 ATV 2

Mast Up: 31'
Mast Down: 10' 6"
Height: 10' 9"
Length: 22'
Width: 7' 10"
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 24,000 Lbs.
Fuel: Gasoline

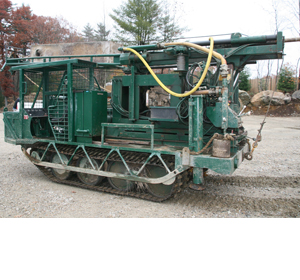

CME-55 Track

Mast Up: 26' 6"
Mast Down: 10'
Height: 10'
Length: 16' 6"
Width: 7' 8"
Pistons Up: 18' 9"
HT on Trailer: 13'
HT off Trailer: 10'
Weight: 24,000 Lbs.
Fuel: Diesel

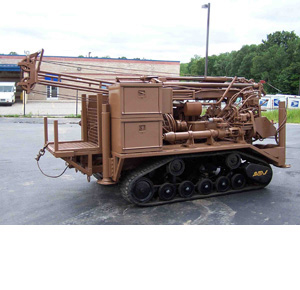

CME-45 A Track

Mast Up: 16' 6"
Mast Down: 7' 4"
Height: 7' 4"'
Length: 15'
Width: 6' 8"
Pistons Up: 12' 4"
HT on Trailer: NA
HT off Trailer: NA
Weight: 12,000 Lbs.
Fuel: Diesel

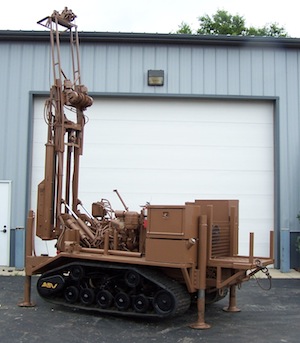

CME-45 C Track

Mast Up: 16' 6"
Mast Down: 7' 4"
Height: 7' 4"'
Length: 15'
Width: 6' 8"
Pistons Up: 12' 4"
HT on Trailer: NA
HT off Trailer: NA
Weight: 12,000 Lbs.
Fuel: Diesel

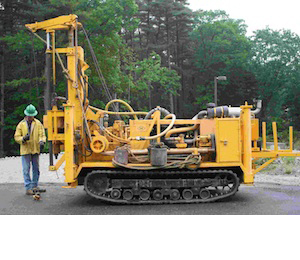

CME LC-60

CME-LC 60 Track

Mast Up: 14' 10"
Mast Down: 10'
Height: 7'
Length: 14'
Width: 7'
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 16,000 Lbs.
Fuel: Diesel

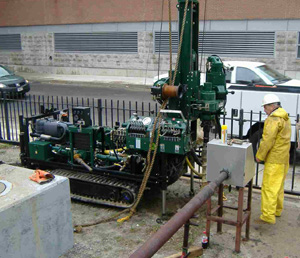

Acker Soil Scout Track

Mast Up: 12' 6"
Mast Down: 7' 11"
Height: 5' 11"'
Length: 10' 7"
Width: 4' 2"
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 6,500 Lbs.
Fuel: Diesel

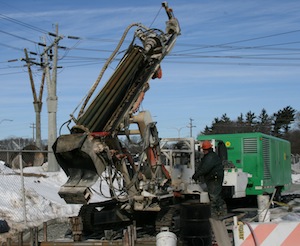

Gil Beetle

Gil Beetle

Mast Up: 16' 4"
Mast Down: 7' 2"
Height: 7' 2"'
Length: 16' 1"
Width: 8'
Pistons Up: NA
HT on Trailer: 10'
HT off Trailer: 7' 2"
Weight: 15,000 Lbs.
Fuel: Diesel

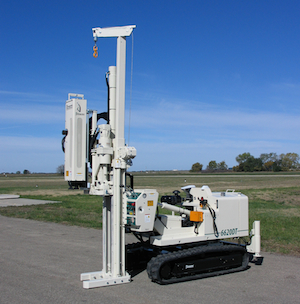

Geoprobe 6620

Mast Up: 13' 6"
Mast Down: 7' 5"
Height: 7' 3"'
Length: 7' 8"
Width: 5'
Pistons Up: 13'
HT on Trailer: NA
HT off Trailer: NA
Weight: 7,800 Lbs.
Fuel: Diesel

All Geo's low overhead equipment is modified for interior drilling using steel exhaust hose.

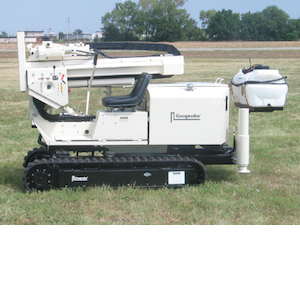

Geoprobe 54DT

Mast Up: 10' 5"
Mast Down: 6'
Height: 6'
Length: 7' 8"
Width: 4'
Pistons Up: 10' 5"
HT on Trailer: NA
HT off Trailer: NA
Weight: 5,000 Lbs.
Fuel: Diesel

All Geo's low overhead equipment is modified for interior drilling using steel exhaust hose.

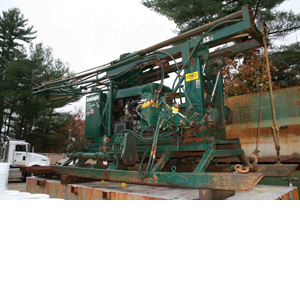

CME-55 Skid on Truck

CME-55 Skid

Mast Up: 24' 5"
Mast Down: 7' 6"
Height: 7' 6"
Length: 22'
Width: 6'
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 8,000 Lbs.
Fuel: Gasoline

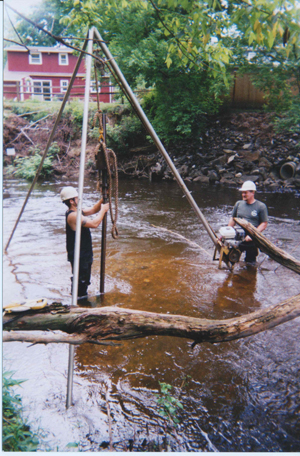

Geologic Tripod Legs Drilling in Stream

Tripod Legs

Mast Up: 16' 4"
Mast Down: NA
Height: NA
Length: NA
Width: NA
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: NA
Fuel: Gasoline

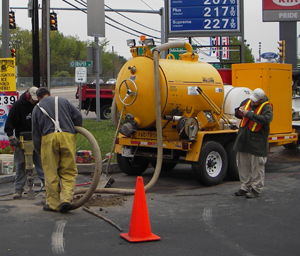

Geologic Earth Vactor

Vactor

Mast Up: NA
Mast Down: NA
Height: 8' 7"
Length: 17' 2"
Width: 6' 10"
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 9,000 Lbs.
Fuel: Diesel

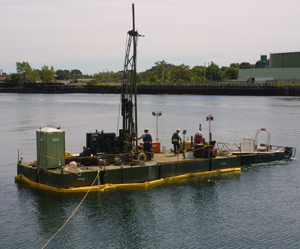

Stream Barge Adjustable Width

Sectional Barge

Mast Up: NA
Mast Down: NA
Height: 4"'
Length: 43'
Width: 18'
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 8,000 Lbs. Each
Fuel: NA

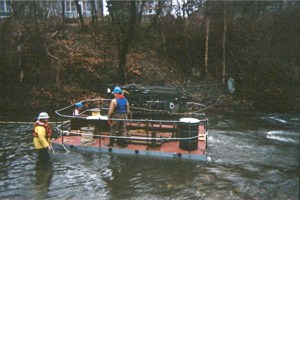

Swamp Matts - Stream Barge

Stream Barge

Mast Up: NA
Mast Down: NA
Height: 1' 6"'
Length: 16'
Width: 11' Adjustable width
Pistons Up: NA
HT on Trailer: NA
HT off Trailer: NA
Weight: 1,500 Lbs. Each
Fuel: NA



Back to Top



For Ferry Reservations

ATV on Trailer with Kennworth
67' L x 12' H x 8'5" W

Mack and Tag Trailer
60'3" L x 9' H x 8'5" W

Freightliner
28' BEDL x 10'6" H x 8'5" W x 4'1" BEDHT

Supply Trucks
20' L x 10' H x 8' W

Noted:
Stream Barge is made to be adjustable in width.

All tracks are rubber for pavement access, except CME-55

Other ancillary machinery such as work boats, excavation equipment, light and grout plants, high and low pressure compressors, assorted ATVs, steam cleaners, and generators are not listed here but available.
